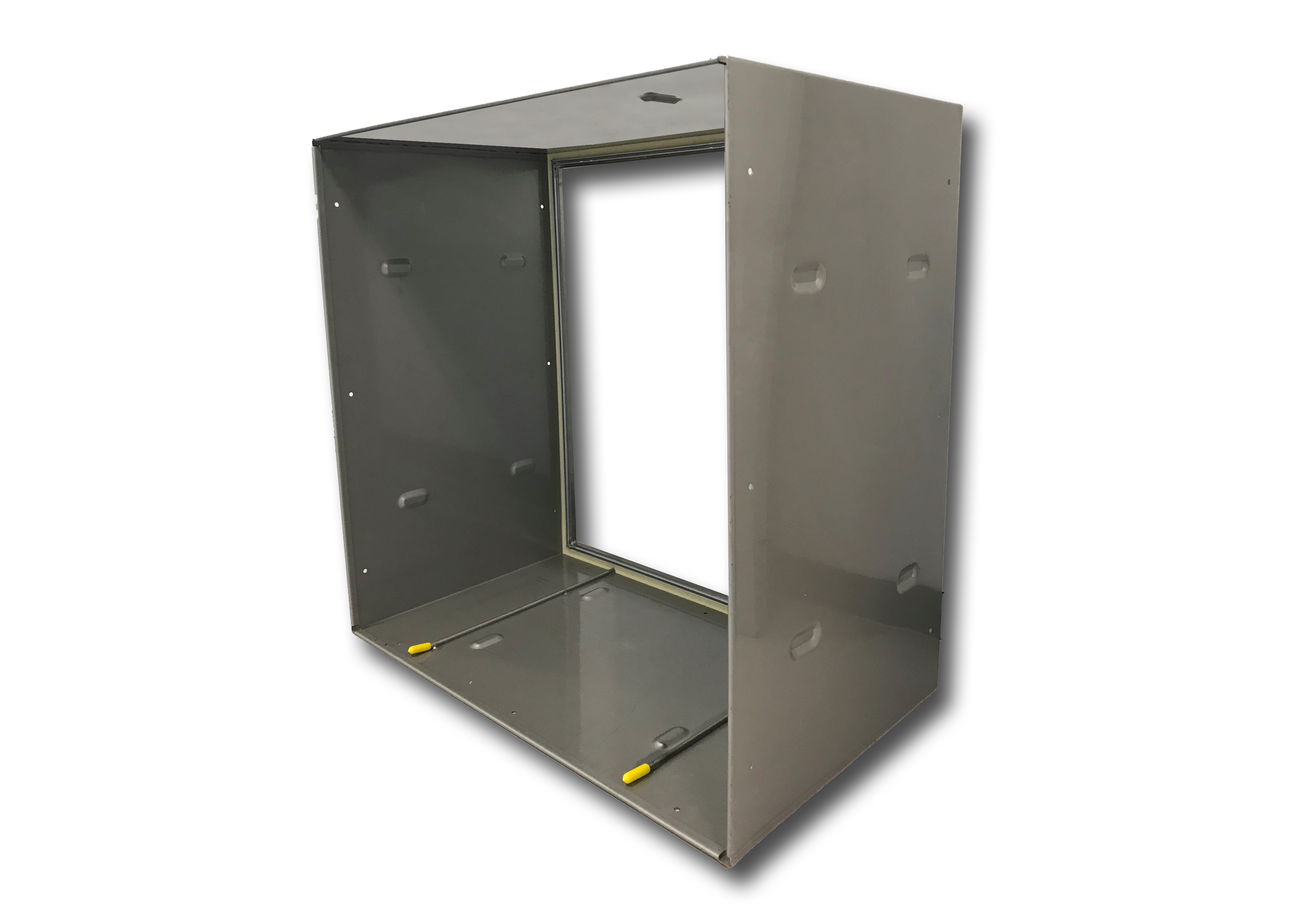

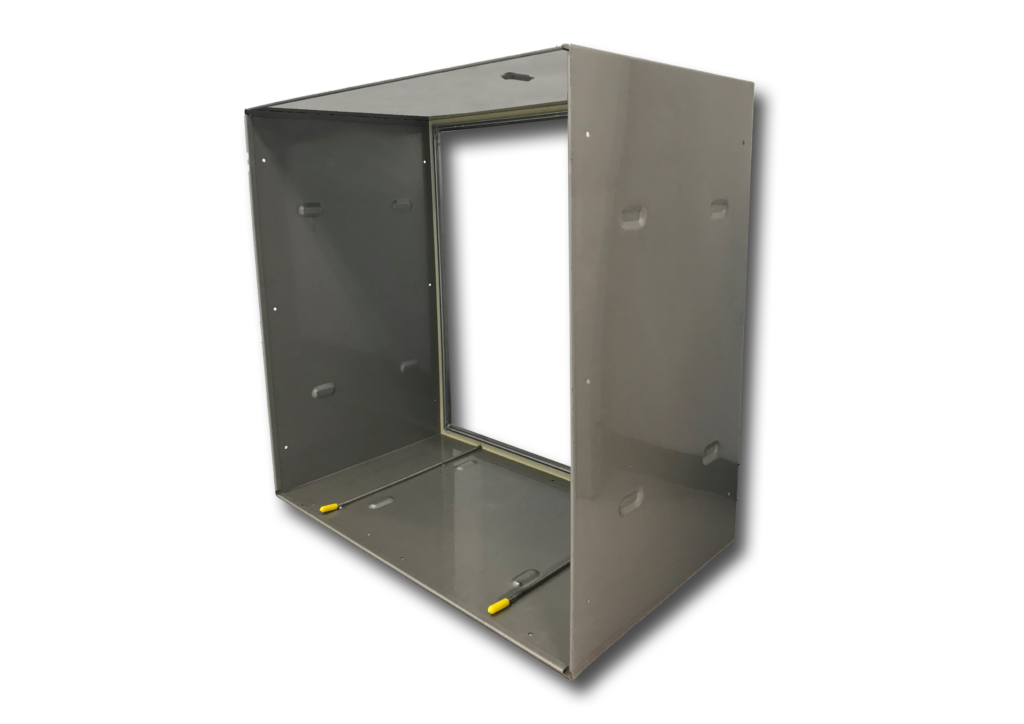

Applications
- Installation frames for HEPA filters in AHU’s or ventilation systems
Highlights
- Equipped with seal test groove acc.to DIN1946-4 (Optional)
- Sealing guaranted, high tightness
- Stainless Steel or Painted
- Compact design with stability
- Robust construction
Order Code
| Filter Type | Material | Leakproff Gasket Surface | Dimensions (mm) |
|---|---|---|---|
| HFK : HEPA Filter Frame Holding | G: Galvanized SS: Stainless Steel 304 SS316: Stainless Steel 316 P: Powder Coated | T: Test Groove F: Flat Surface | 305x610x366 305x305x366 610x610x366 |
| Frame Model | Frame Dimensions WxHxD (mm) | Suitable Filter Frame Dimensions WxHxD (mm) |
|---|---|---|
| HFK-G-F-305-610-366 | 305x610x366 | 287x592x292 |
| HFK-G-F-610-610-366 | 610x610x366 | 592x592x292 |
| HFK-G-F-322-627-366 | 322x627x366 | 305x610x292 |
| HFK-G-F-627-627-366 | 627x627x366 | 610x610x292 |
| HFK-SS-T-305-610-366 | 305x610x366 | 287x592x292 |
| HFK-SS-T-610-610-366 | 610x610x366 | 592x592x292 |
| HFK-SS-T-322-627-366 | 322x627x366 | 305x610x292 |
| HFK-SS-T-627-627-366 | 627x627x366 | 610x610x292 |
