Applications
- Microelectronics
- Laboratories
- Life science
- Healthcare
- Food and Beverage Industry
Highlights
- Easy installation into cleanroom grids
- Snap-in, prefilter for easy replacement and maintenance
- Guaranteed leak-free
- Self-contained ceiling fan filter unit
- Low operating cost, low wattage
- AC or EC fans optionally
- Silent operation (<65 Dba)
- Uniform air velocity
- Differential pressure gauge available on request
- Test aerosol inlet nozzle (DOP/EMERY test)
- Adjustable airflow with variable speed controller on request
- Replacement HEPA filter from room side or ceiling side

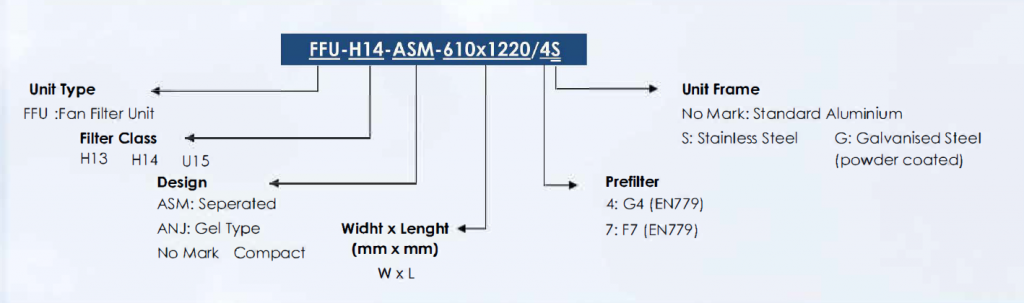

Order Code
| Accesories Type | Filter Class | Material | Design | Prefilter | Fan | Filter Dimensions (mm) |
|---|---|---|---|---|---|---|
| FFU: Fan Filter Unit | E10 E11 E12 H13 H14 U15 | SS: Stainless Steel A: Aluminium P: Powder Coated | SM: Seperated J: Gel Type C: Compact | 4: G4 7: F7 8: F8 9: F9 | EC AC | 610x610x89 |
| Frame Model | EN 1822 | ISO 29463 | Dimensions WxHxD (mm) | Nominal Airflow (m³/h) | Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|
| FFU-H14-A-SM-4-AC-610-610 | H14 | ISO 45 H | 610x610x89 | 600 | 125 |
| FFU-H14-A-SM-4-2AC-610-1220 | H14 | ISO 45 H | 610x1220x89 | 1200 | 125 |
| FFU-H14-A-SM-4-EC-610-610 | H14 | ISO 45 H | 610x610x89 | 600 | 125 |
| FFU-H14-A-SM-4-2EC-610-1220 | H14 | ISO 45 H | 610x1220x89 | 1200 | 125 |
| FFU-H14-A-SM-4-AC-610-610 | H14 | ISO 45 H | 610x610x109 | 600 | 90 |
| FFU-H14-A-SM-4-2AC-610-1220 | H14 | ISO 45 H | 610x1220x109 | 1200 | 90 |
| FFU-H14-A-SM-4-EC-610-610 | H14 | ISO 45 H | 610x610x109 | 600 | 90 |
| FFU-H14-A-SM-4-2EC-610-1220 | H14 | ISO 45 H | 610x1220x109 | 1200 | 90 |
*Height will be changed according to design.
Unit depth is less than 400mm, check design drawing.
Secure and Seal: Fan Filter Units in Leak-Proof Design
Fan Filter Units are ensuring a leak-proof design that offers superior performance and durability. Please review the detailed profile drawing for a comprehensive understanding of the filter frame’s dimensions and design features. This will assist in choosing the perfect filter for your specific requirements.
