Applications
- Final filter for cleanrooms
- Life science
- Microelectronics
Highlights
- Self-contained air inlet, no additional housing required
- Adjustable airflow by means of a damper
- ∆Pa and %100 DOP nozzles exist (accessible from technical or room side)
- High quality glass fiber media
- Guaranteed leak-free
- Individiual test certificate (acc. to EN 1822 – ISO 29463)
Technical Specifications
| Filter Standard: | EN 1822 and ISO 29463 | Max. Operating Tempature: | 80˚C | |
| Filter Class: | H13 - H14 - U15 | Faceguard: | Aluminium sheet (powder coated) | |
| Media: | High quality glass fiber | Sealing Compound: | Two component polyurethane | |
| Frame: | Anodized extruded aluminium | Seperator: | Hotmelt | |
| Rec. Final Pressure Drop: | Initial pressure drop x2, (max. 600 Pa) |
Order Code
| Filter Type | Filter Class | Pleat Height | Divider | Adjustable Mechanism | Dimensions (mm) | Spigot Diameter | Faceguard | Gasket |
|---|---|---|---|---|---|---|---|---|
| HTH : Terminal HEPA Filter with Divider | H13 H14 U15 | 1: 50 mm 6: 100 mm | W: Without D: Exist | W: Without AFM: Exist | 610x610x125 | A: 125 B: 150 C: 160 D: 200 M: 250 F: 300 L: 315 X: 355 Z: Special | FC: On Clean Side | W: Without P: Continuous Pu Foam E: EPDM Flat |

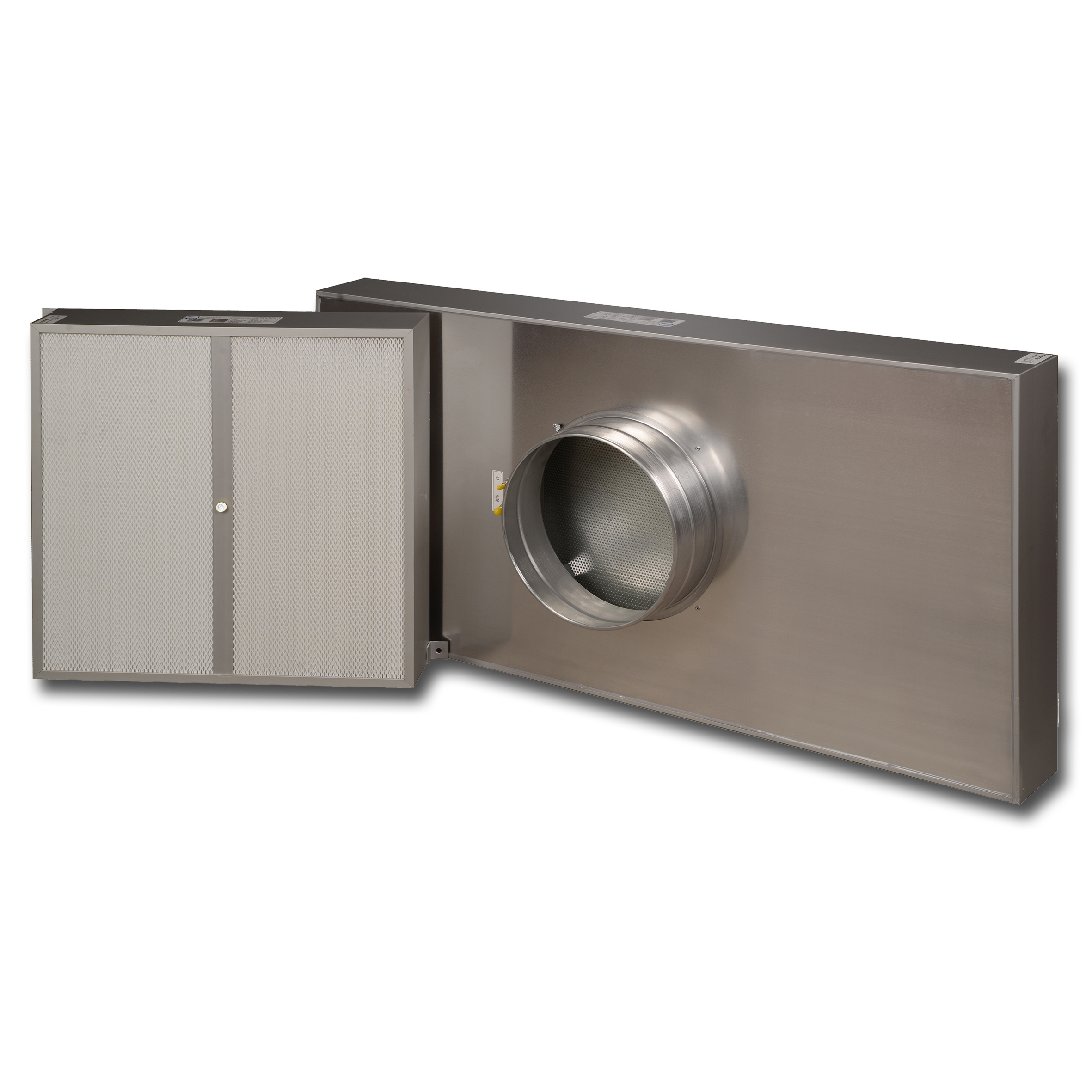

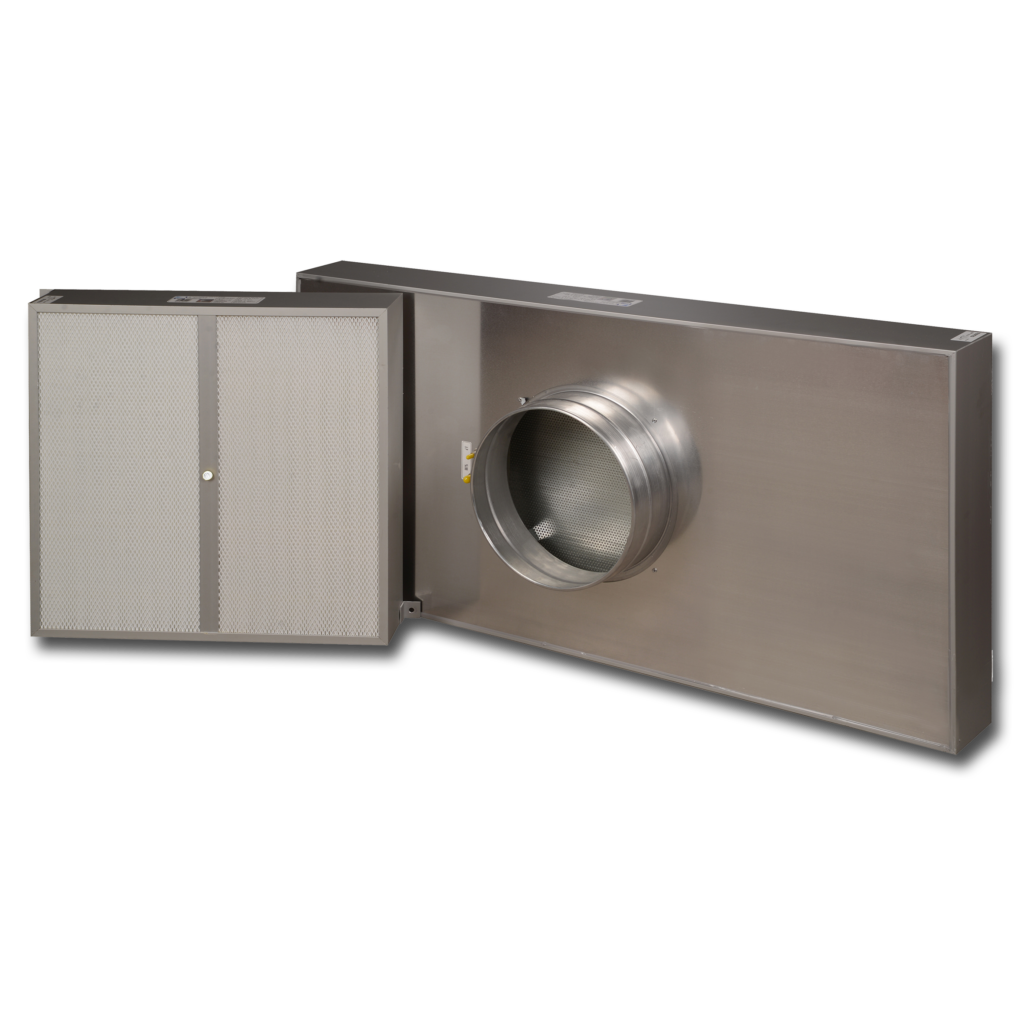

TERMINAL HEPA FILTER (WITH DIVIDER/125)
| Filter Model | EN 1822 | ISO 29463 | Dimensions WxHxD (mm) | Spigot Diameter (mm) | Filtration Area (m²) | Pleat Height (mm) | Nominal Airflow (m³/h) | Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| HTH-H13-1-D-AFM-305-305-125-C | H13 | ISO 35 H | 305x305x125 | 160 | 2,8 | 50 | 150 | 90 |
| HTH-H13-1-D-AFM-305-610-125-D | H13 | ISO 35 H | 305x610x125 | 200 | 5,5 | 50 | 300 | 90 |
| HTH-H13-1-D-AFM-457-457-125-D | H13 | ISO 35 H | 457x457x125 | 200 | 6,2 | 50 | 340 | 90 |
| HTH-H13-1-D-AFM-610-610-125-D | H13 | ISO 35 H | 610x610x125 | 200 | 11,0 | 50 | 600 | 90 |
| HTH-H13-1-D-AFM-610-915-125-M | H13 | ISO 35 H | 610x915x125 | 250 | 16,5 | 50 | 900 | 90 |
| HTH-H13-1-D-AFM-610-1220-125-M | H13 | ISO 35 H | 610x1220x125 | 250 | 22,0 | 50 | 1200 | 90 |
| HTH-H14-1-D-AFM-305-305-125-C | H14 | ISO 45 H | 305x305x125 | 160 | 2,8 | 50 | 150 | 115 |
| HTH-H14-1-D-AFM-305-610-125-D | H14 | ISO 45 H | 305x610x125 | 200 | 5,5 | 50 | 300 | 115 |
| HTH-H14-1-D-AFM-457-457-125-D | H14 | ISO 45 H | 457x457x125 | 200 | 6,2 | 50 | 340 | 115 |
| HTH-H14-1-D-AFM-610-610-125-D | H14 | ISO 45 H | 610x610x125 | 200 | 11,0 | 50 | 600 | 115 |
| HTH-H14-1-D-AFM-610-915-125-M | H14 | ISO 45 H | 610x915x125 | 250 | 16,5 | 50 | 900 | 115 |
| HTH-H14-1-D-AFM-610-1220-125-M | H14 | ISO 45 H | 610x1220x125 | 250 | 22,0 | 50 | 1200 | 115 |
| HTH-U15-1-D-AFM-305-305-125-C | U15 | ISO 55 U | 305x305x125 | 160 | 2,8 | 50 | 150 | 135 |
| HTH-U15-1-D-AFM-305-610-125-D | U15 | ISO 55 U | 305x610x125 | 200 | 5,5 | 50 | 300 | 135 |
| HTH-U15-1-D-AFM-457-457-125-D | U15 | ISO 55 U | 457x457x125 | 200 | 6,2 | 50 | 340 | 135 |
| HTH-U15-1-D-AFM-610-610-125-D | U15 | ISO 55 U | 610x610x125 | 200 | 11,0 | 50 | 600 | 135 |
| HTH-U15-1-D-AFM-610-915-125-M | U15 | ISO 55 U | 610x915x125 | 250 | 16,5 | 50 | 900 | 135 |
| HTH-U15-1-D-AFM-610-1220-125-M | U15 | ISO 55 U | 610x1220x125 | 250 | 22,0 | 50 | 1200 | 135 |
Other dimensions are available on request.
Add 15Pa to initial resistance for hood contruction.
TERMINAL HEPA FILTER (WITH DIVIDER/175)
| Filter Model | EN 1822 | ISO 29463 | Dimensions WxHxD (mm) | Spigot Diameter (mm) | Filtration Area (m²) | Pleat Height (mm) | Nominal Airflow (m³/h) | Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|---|
| HTH-H13-6-AFM-305-305-175-C | H13 | ISO 35 H | 305x305x175 | 160 | 4,5 | 100 | 150 | 65 |
| HTH-H13-6-AFM-305-610-175-D | H13 | ISO 35 H | 305x610x175 | 200 | 9,0 | 100 | 300 | 65 |
| HTH-H13-6-AFM-457-457-175-D | H13 | ISO 35 H | 457x457x175 | 200 | 10,1 | 100 | 340 | 65 |
| HTH-H13-6-AFM-610-610-175-D | H13 | ISO 35 H | 610x610x175 | 200 | 18,0 | 100 | 600 | 65 |
| HTH-H13-6-AFM-610-915-175-M | H13 | ISO 35 H | 610x915x175 | 250 | 27,0 | 100 | 900 | 65 |
| HTH-H13-6-AFM-610-1220-175-M | H13 | ISO 35 H | 610x1220x175 | 250 | 36,0 | 100 | 1200 | 65 |
| HTH-H14-6-AFM-305-305-175-C | H14 | ISO 45 H | 305x305x175 | 160 | 4,7 | 100 | 150 | 80 |
| HTH-H14-6-AFM-305-610-175-D | H14 | ISO 45 H | 305x610x175 | 200 | 9,4 | 100 | 300 | 80 |
| HTH-H14-6-AFM-457-457-175-D | H14 | ISO 45 H | 457x457x175 | 200 | 10,5 | 100 | 340 | 80 |
| HTH-H14-6-AFM-610-610-175-D | H14 | ISO 45 H | 610x610x175 | 200 | 18,8 | 100 | 600 | 80 |
| HTH-H14-6-AFM-610-915-175-M | H14 | ISO 45 H | 610x915x175 | 250 | 28,2 | 100 | 900 | 80 |
| HTH-H14-6-AFM-610-1220-175-M | H14 | ISO 45 H | 610x1220x175 | 250 | 37,6 | 100 | 1200 | 80 |
| HTH-U15-6-AFM-305-305-175-C | U15 | ISO 55 U | 305x305x175 | 160 | 5,0 | 100 | 150 | 100 |
| HTH-U15-6-AFM-305-610-175-D | U15 | ISO 55 U | 305x610x175 | 200 | 10,0 | 100 | 300 | 100 |
| HTH-U15-6-AFM-457-457-175-D | U15 | ISO 55 U | 457x457x175 | 200 | 11,2 | 100 | 340 | 100 |
| HTH-U15-6-AFM-610-610-175-D | U15 | ISO 55 U | 610x610x175 | 200 | 20,0 | 100 | 600 | 100 |
| HTH-U15-6-AFM-610-915-175-M | U15 | ISO 55 U | 610x915x175 | 250 | 30,0 | 100 | 900 | 100 |
| HTH-U15-6-AFM-610-1220-175-M | U15 | ISO 55 U | 610x1220x175 | 250 | 40,0 | 100 | 1200 | 100 |
Other dimensions are available on request.
Add 15Pa to initial resistance for hood contruction.
